Please Note: Type
2 and Type 4 kits and the Type C kits do not require drilling the carburetor.
These pictures are for dedicated Type 1, Type 3 and Type A kits only.
* * * *
* * * * * *
* * * * * *
Carburetor Conversion
Process
for Type 1, Type 3, and Type A Kits
Be sure to review our free
offer below.

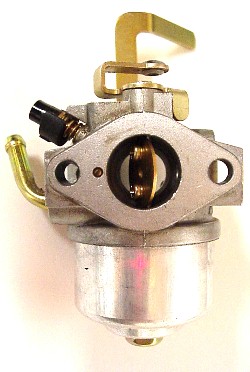

Here is the still image conversion of a standard carburetor. This
carburetor
happens to be from a Yamaha EF2600 but most of the Briggs and Stratton, Honda, Generac,
Kawasaki, Kohler, Kubota, Mitsubishi, Onan, Tecumseh, Robin Wisconsin, and many
other engines are quite similar in their conversion technique. Each step
that is describe is not exactly what you will find on all carburetors but the
premise is still the same; the carburetor is removed, drilled and made ready for
the alternate fuel tube and then reinstalled. Click on any of the pictures
below to get a larger image.
Step 1 - Remove the
carburetor from the engine.
This
requires removing the air cleaner cover. After the cover is removed the filter
element is then removed. Remove the nuts that hold
the lower section of the air cleaner housing to the mouth of the carburetor.
Remove these two nuts and any other bolt that may be used to hold on the air
cleaner.

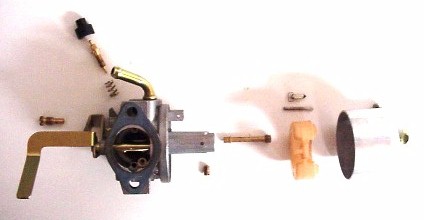

Step 2 - Disassemble all
the parts that are attached to the carburetor.
This
requires removing the bowl screw, float bowl, float pin, float, needle, high
speed jet and nozzle and idle mixture screw.

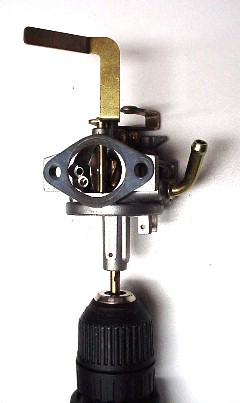

Step 3 - Drill the
carburetor and make ready for reinstalling.
Install the new vacuum fitting into the idle mixture port. The main passage up
through the carburetor is not large enough for the new fuel tube to fit so it
has to be drilled out. This usually requires a 15/64 or 17/64 drill bit.
Drill up the main passage of the carburetor as shown until the bit appears in the air stream.
Drill the inside of the idle vacuum fitting for a stronger vacuum signal. Install
the new fuel tube which is now held up into the carburetor by the same threads that
used to hold on the float bowl. Using the supplied silicone, seal up all
ports other than the idle fitting and the main fuel tube.

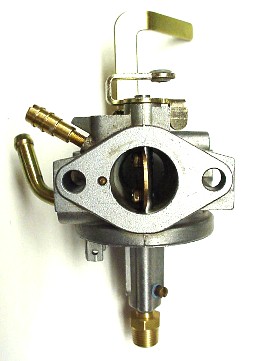

Step 4 - Allow the silicone
to set for 24 hours.
The
carburetor is now converted and ready to reinstall. The finished carburetor
should be allowed to sit for at least 24 hours to allow the silicone to set
firmly so that no silicone is drawn into the air stream.
Step 5 - Reinstall the
carburetor on the engine.
Reverse the process of removal to reinstall the carburetor. Attach the engine regulator
to the frame, cut and install the vacuum and fuel hoses and the unit is ready to
connect to the alternative gas supply.
* *
